Ground Protection & Decking System
AlphaMax Ultra Deck™
Flooring Without Limits
The smarter, stronger, more sustainable alternative to wood. These 4’×8′ HDPE panels handle over 50,000 lbs per square foot on the ground and outperform plywood when elevated. 20+ year lifespan. 100% recyclable. Works on scaffold or as laydown flooring.
150 psf Elevated
@ 24″ on-center with 4:1 safety factor
50,000+ psf Ground
On bearing ground

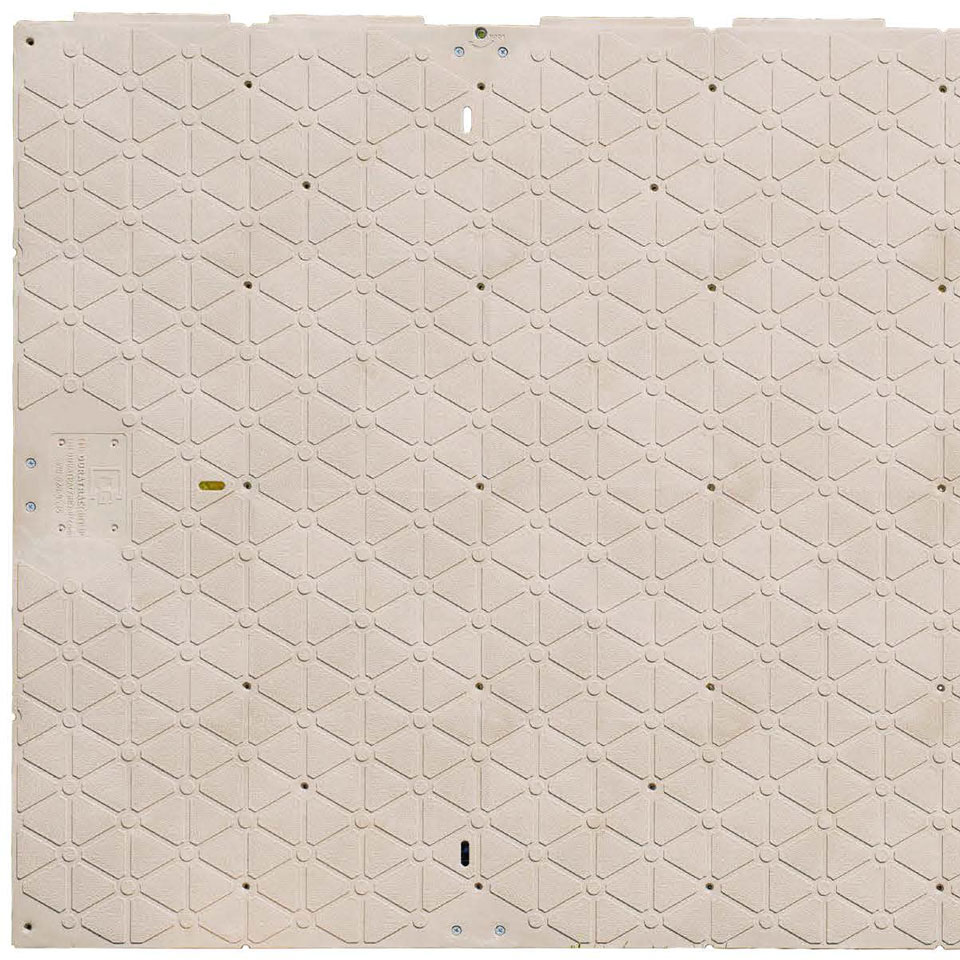

4' × 8' × 1.25"
32 sq ft per panel, 72 lbs
20+ Year Lifespan
100% recyclable HDPE
One Product. Two Applications.
AlphaMax Ultra Deck excels as both ground protection AND elevated scaffold decking.
Ground Protection
Laydown flooring for heavy equipment and vehicles
- ✓ Temporary roadways for forklifts, vehicles, trailers
- ✓ Protects sensitive turf and surfaces
- ✓ Contours to uneven/undulating ground
- ✓ Anti-slip textured surface with hydra-channels
- ✓ Prevents equipment from getting trapped
Elevatable Solutions
Scaffold decking and elevated platforms
- ✓ Integrates with all scaffold systems
- ✓ Compatible with advanced modular systems (TF-2100)
- ✓ Replaces plywood—lighter, stronger, longer-lasting
- ✓ Bi-directional connection for cable/HVAC access
- ✓ Works with Atlys BEAMM for elevated structures
Engineered for Performance
Design features that make AlphaMax Ultra faster to install and more durable than wood.
Countersunk Screw Design
60% fewer screws per floor. Cuts installation time in half. Clean, flush surface with no trip hazards.
Bi-Directional Connection
Hydra-Channels Drainage
Diamond Cross-Webbing
Tongue & Groove + Easy Lock
Transition Strip & Trim Edge
Technical Specifications
Complete specs for architects, engineers, and technical buyers.
| Specification | AlphaMax Ultra Deck |
|---|---|
| Dimensions (Standard) | 4 ft × 8 ft × 1.25 in thick |
| Custom Sizes | 4’×2′, 4’×4′, 4’×6′ available |
| Usable Surface Area | 32 sq ft per panel |
| Weight | 72 lbs |
| Load Capacity (Elevated) | 150 psf @ 24″ on-center with 4:1 safety factor |
| Load Capacity (Laydown) | 50,000+ psf on bearing ground |
| Material | 100% Prime Spec Virgin HDPE |
| Slip Resistance | Textured surface with hydra-channels & drainage points |
| Durability | Resistant to corrosion, chemicals, solvents, insects, bacteria, detergent |
| Cleaning | Medium to high pressure wash. Detergents and antibacterial agents. |
| Flame Resistance | Exceeds UL94HB |
| Colors | Desert Sand, Translucent |
| Lifespan | 20+ years |
| Decks Per Pallet | 50 decks (4×8 pallet) |
| Shipping (48ft Flatbed) | 600 decks, 12 pallets, 19,200 sq ft total |
| Shipping (20ft Container) | 350 decks |
| Shipping (40ft HC Container) | 700 decks |
| Floor Covering Compatibility | Carpet, turf, tile squares, vinyl plank, hardwood & more |
| Engineering Support | Stamped engineering available upon request |
Documentation & Certifications
Spec sheets, test reports, and certifications – everything you need for your project file.
Product Spec Sheet
Complete specifications for AlphaMax Ultra Deck
Load Test Report
Independent third-party load capacity testing results.
UL94HB Flame Certificate
Official flame resistance certification documentation.
Product Brochure
Full color brochure with photos and use cases.
Accessories & Integration
Components for seamless installation and plywood integration

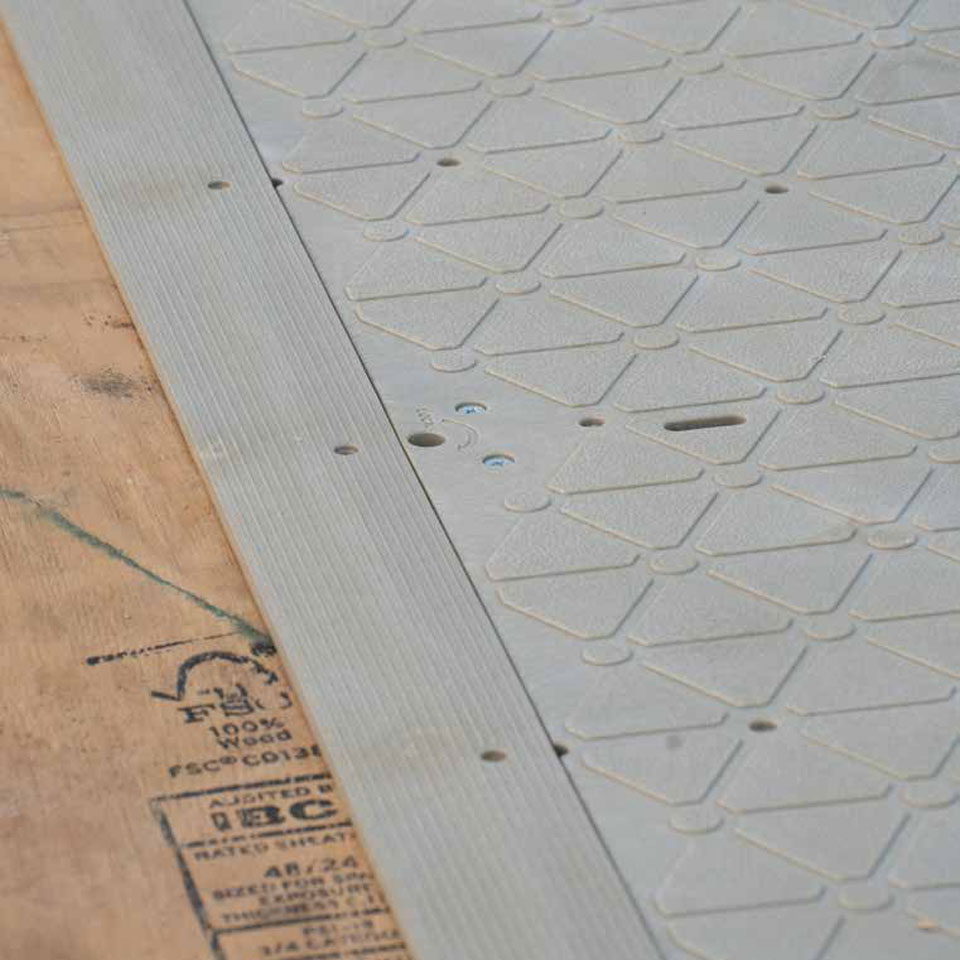

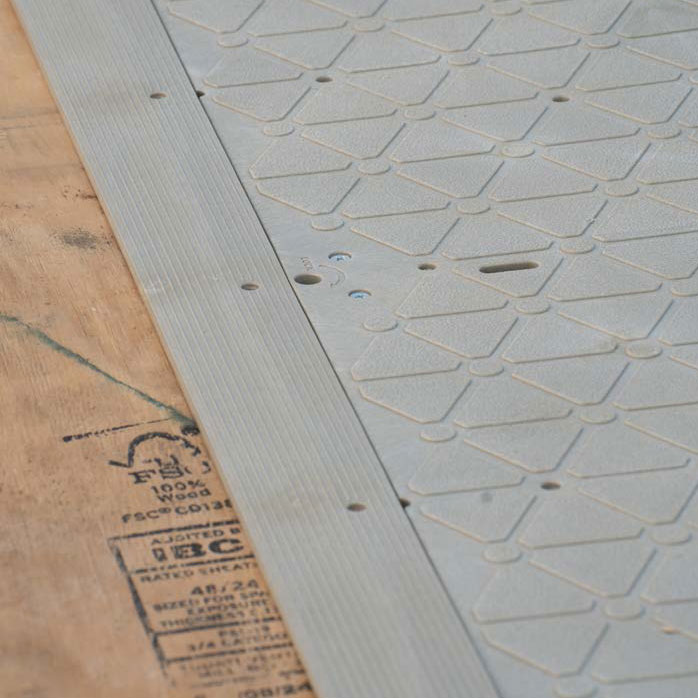

AlphaMax Transition Strip
Creates smooth connection between AlphaMax panels and existing plywood. Essential for hybrid installations.

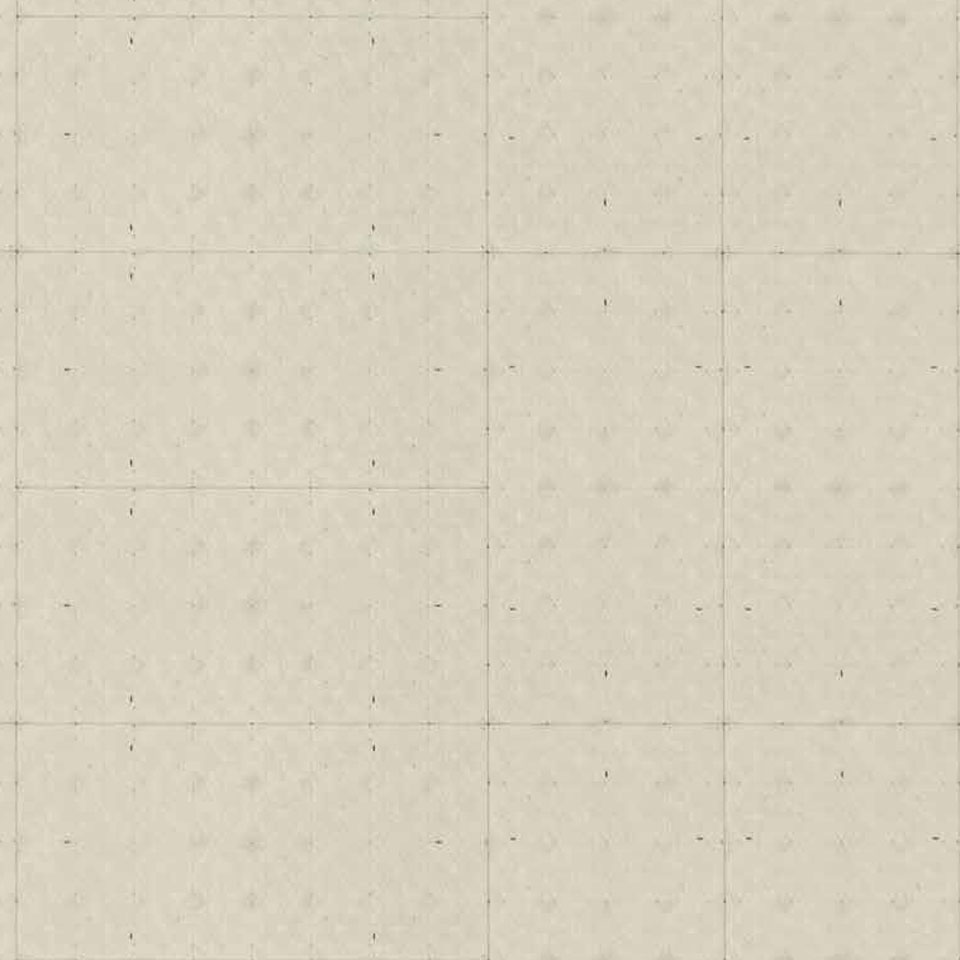

Bi-directional Connection Points
Bi-directional connection points and seamless panel access ensure effortless cable management and HVAC integration.

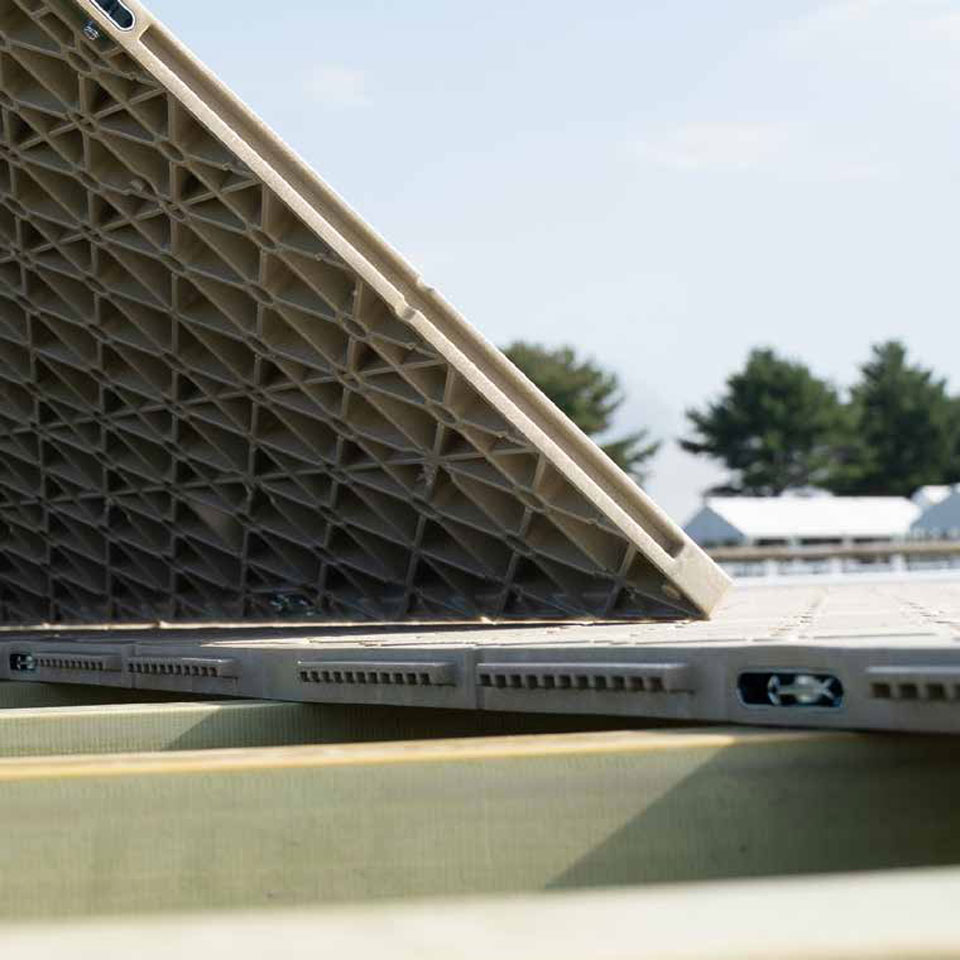

Diamond Design
Performance strength proven by diamond design cross-webbing and transverse stiffeners.
Built For
Where AlphaMax Ultra Deck delivers – from golf tournaments to military operations.
Golf Tournaments & Events
Heavy machinery, hospitality seating, merchandise staging, first-aid operations—all supported from setup through teardown.

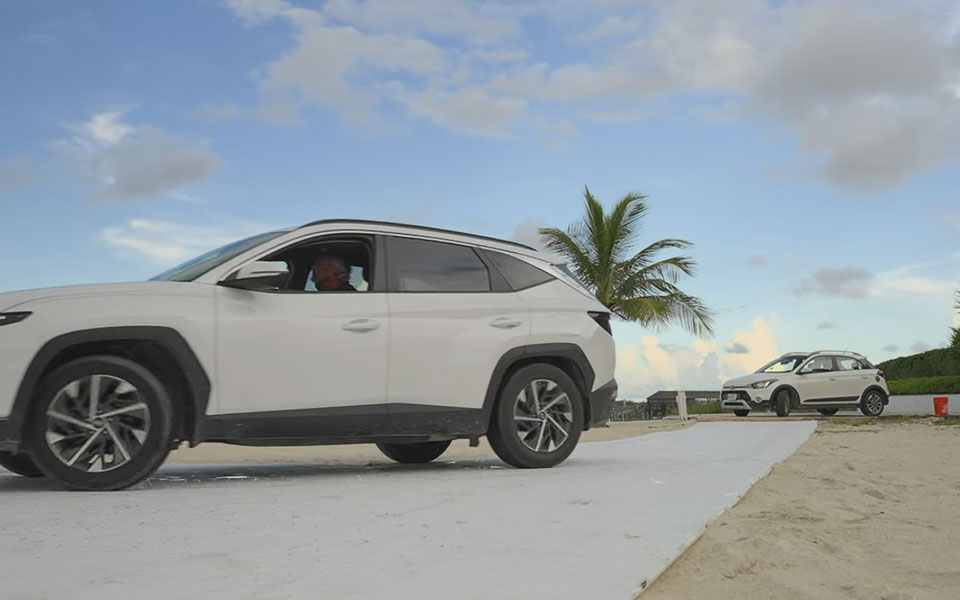

Beach & Sandy Environments
Contours over uneven sand. Supports vehicles and ADA access while protecting sensitive beach areas.
Stadiums & Large Venues
Durable, stable platforms for heavy traffic. Protects turf during events and construction.

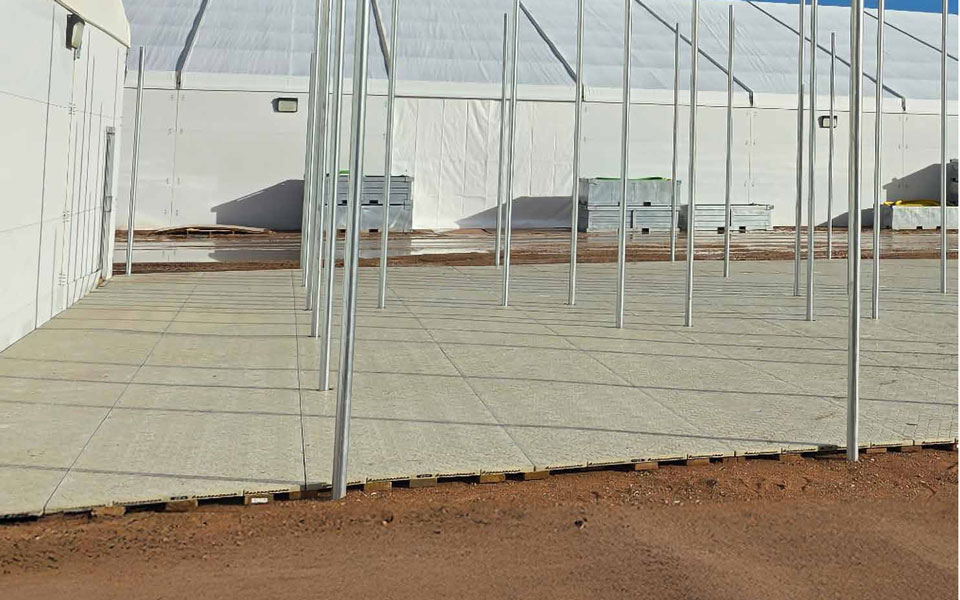

Military & Disaster Relief
Fast, reliable flooring for rapid deployment. Shelters, field kitchens, heavy equipment zones.

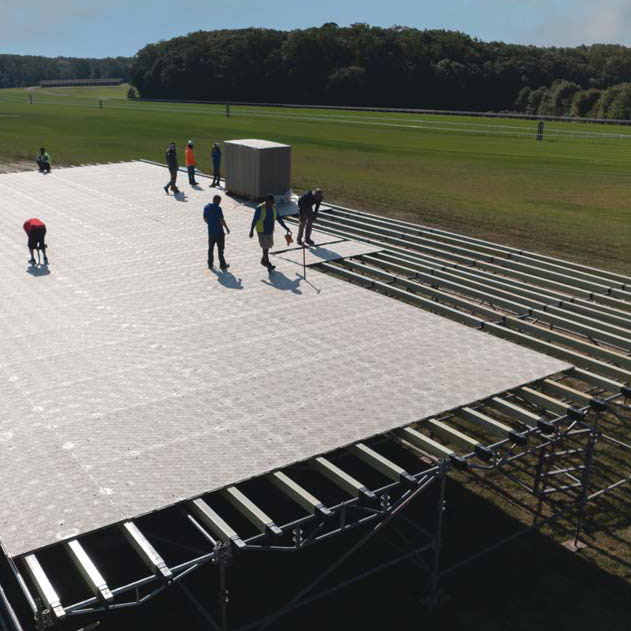

Elevated Floors & Structures
Pairs with Atlys BEAMM for strong, stable elevated floors. Stages, tents, walkways, support areas.

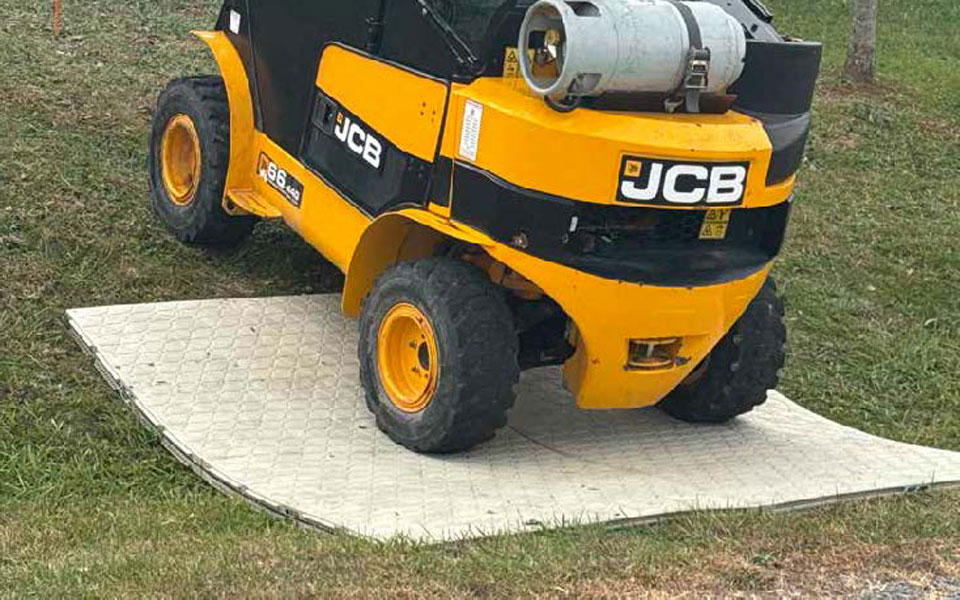

Construction Access Roads
Temporary roadways for forklifts, vehicles, trailers. Prevents equipment from getting trapped in soft ground.
See AlphaMax Ultra Deck in Action
The newest product from The Duratrac Group!
Discover AlphaMax Ultra Deck, a durable modular flooring system engineered for events, tent structures, exhibits, and high-traffic environments. In this video, we take an up-close look at AlphaMax Ultra, highlighting its strength, ease of installation, surface finish, and real-world applications.
AlphaMax Ultra Deck is trusted for temporary and semi-permanent flooring, offering stability, clean aesthetics, and long-term reliability. Whether you’re planning a large-scale event, trade show, or tent installation, this solution is built to meet demanding conditions.
AlphaMax Ultra Deck in Action
A Closer Look at Advanced Flooring Solutions
Works Great With
Combine AlphaMax Ultra Deck with these products for complete flooring solutions.
Atlys BEAMM + RASI Connector
FRP beam system for elevated platforms. Pair with Dura-Trac panels for scaffold-ready flooring or ground-level support on uneven terrain.
Dura-Trac® Flooring
4’×4′ modular HDPE panels with slide-lock system for fast event flooring. Use Dura-Trac for pedestrian areas, AlphaMax for heavy equipment zones.
Ready to replace plywood?
Tell us about your project and we’ll help you spec the right AlphaMax configuration for ground protection, elevated decking, or both.
