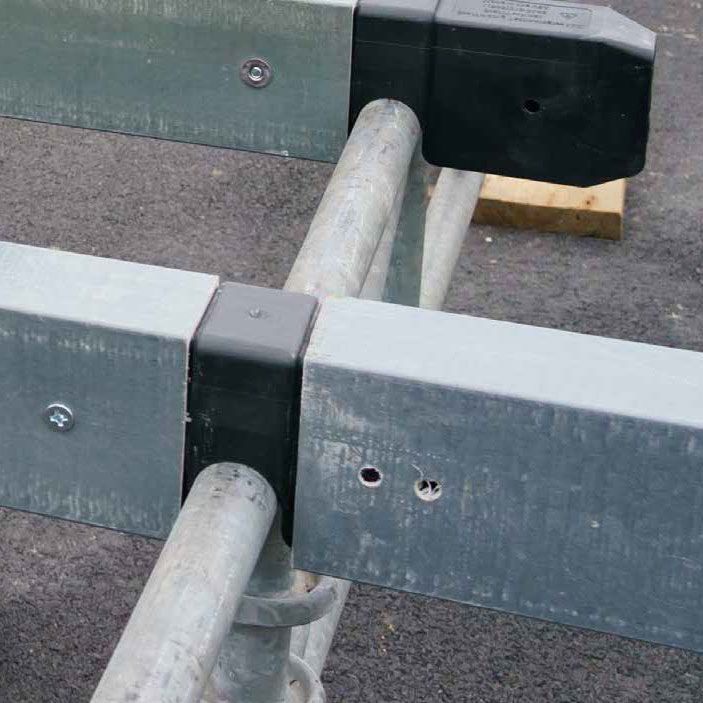

FRP Beam System

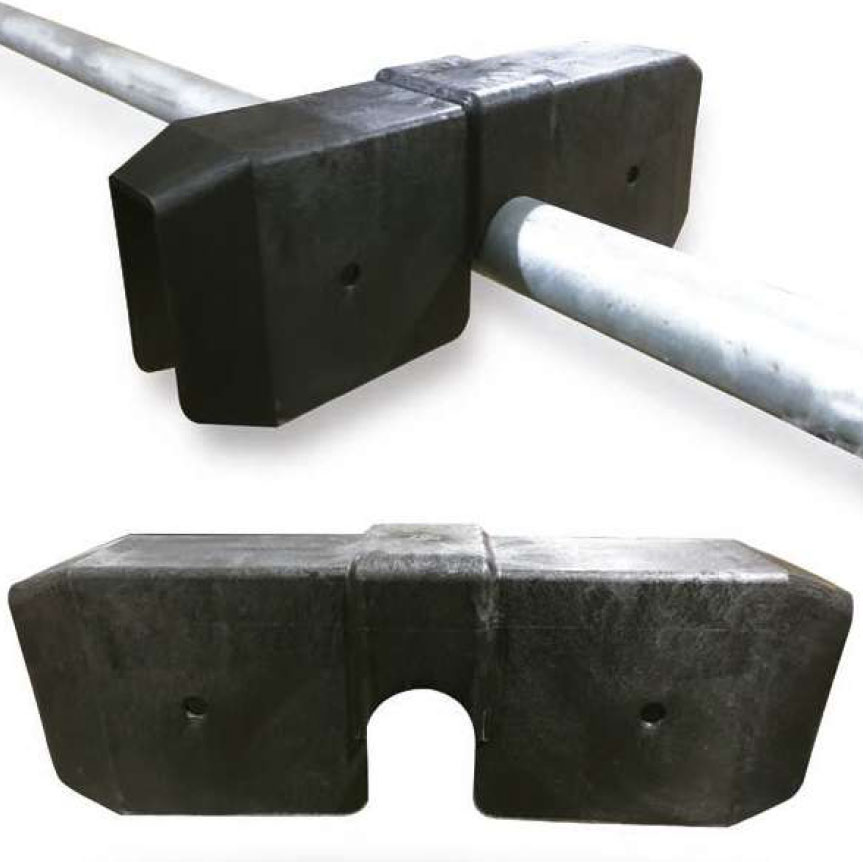

Atlys BEAMM™ + RASI Connector™
Integrity of Steel. Ingenuity of Design.
The smarter, stronger, longer-lasting alternative to timber beams. Engineered using proprietary Pultrusion Technology, this Fiber Reinforced Polymer (FRP) system delivers exceptional strength, 50+ year lifespan, and significant weight savings for elevated platforms, tent structures, and scaffold flooring.
150 psf Elevated
@ 24″ on-center with 4:1 safety factor
50+ Year Lifespan
vs 3-5 years for wood
25 lbs per 10ft
vs 52-65 lbs for timber
ASTM E84 Class II
Superior fire rating
Why Fiber Reinforced Polymers?
FRP is an engineered composite material made of polymers reinforced with fibers such as glass or carbon. Here’s why it matters for your flooring system.
Sustainability
Low carbon footprint. Produces little to no VOCs. Saves trees. Recyclable materials.
Efficiency
Lightweight = more product per truck. Reduces fuel costs and emissions. 1,664 pcs vs 816 per trailer.
Durability
Water impermeable. Insect & corrosion resistant. Fire-rated and certified. 50+ year lifespan.
Cost-Effectiveness
High strength-to-weight ratio leads to lower labor, operational, and storage costs over time.
FRP vs. Timber: The Numbers
Side-by-side comparison of Atlys BEAMM against traditional wood beams.
| Specification | Atlys BEAMM (FRP) | Timber Beam |
|---|---|---|
| Strength | ✓ 150+ lbs/sq ft | 100 lbs/sq ft |
| Weight (10-12ft piece) | ✓ 25 lbs | 52-65 lbs |
| Lifespan | ✓ 50+ years | 3-5 years |
| Fire Rating | ✓ ASTM E84 Class II | ASTM E84 Class III |
| Electrical Conductivity | ✓ Non-conductive, anti-static | Conductive when wet |
| Trucking Capacity | ✓ 1,664 pcs/trailer | 816 pcs/trailer |
| Dimensions | 3.5″ × 5.5″ × 10ft | Matches standard 4×6 |
| Maintenance | ✓ No painting required | Requires priming, painting, repainting |
Technical Specifications
Complete specs for architects, engineers, and technical buyers.

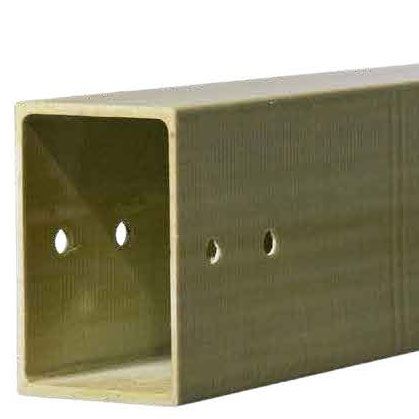

| Specification | Atlys BEAMM + RASI Connector |
|---|---|
| Dimensions (Standard) | 3.5″ × 5.5″ × 10ft (matches wood beam cross-section) |
| Custom Sizes | Available from 2ft to 20ft |
| Wall Thickness | 3.5″ w/.219″ wall × 5.5″ w/.125″ wall |
| Weight (10ft with connector) | 25-27 lbs |
| Load Capacity | 150+ lbs per sq ft (beam to connector over truss) |
| Material | Fiber Reinforced Polymer (FRP) via Pultrusion Technology |
| Fire Rating | ASTM E84 Class II |
| Electrical Properties | Non-conductive, high dielectric capability, anti-static |
| Water Resistance | Impermeable |
| Corrosion/Insect Resistance | Fully resistant |
| Color | Pigment integrated into resin (no painting required) |
| Lifespan | 50+ years |
| Trucking Capacity | 1,664 pcs per 48ft trailer |
| Engineering Support | Stamped engineering available upon request |
| Country of Origin | Designed and manufactured in USA |
Documentation & Certifications
Spec sheets, test reports, and certifications – everything you need for your project file.
Product Spec Sheet
Complete specifications for Atlys + RASI
Load Test Report
Independent third-party load capacity testing results.
ASTM E84 Fire Test
Class II fire rating certification documentation
Product Brochure
Full color brochure with photos and use cases.
Built For
Where Atlys BEAMM excels – from golf tournaments to disaster relief.
Golf Tournaments
Trusted on structures at LIV Golf, PGA events, Waste Management Open, Honda Classic, and Arnold Palmer Invitational.
Tent & Event Structures
Create stable elevated floors for tents on uneven terrain. Works with existing scaffold systems or as ground-level support.

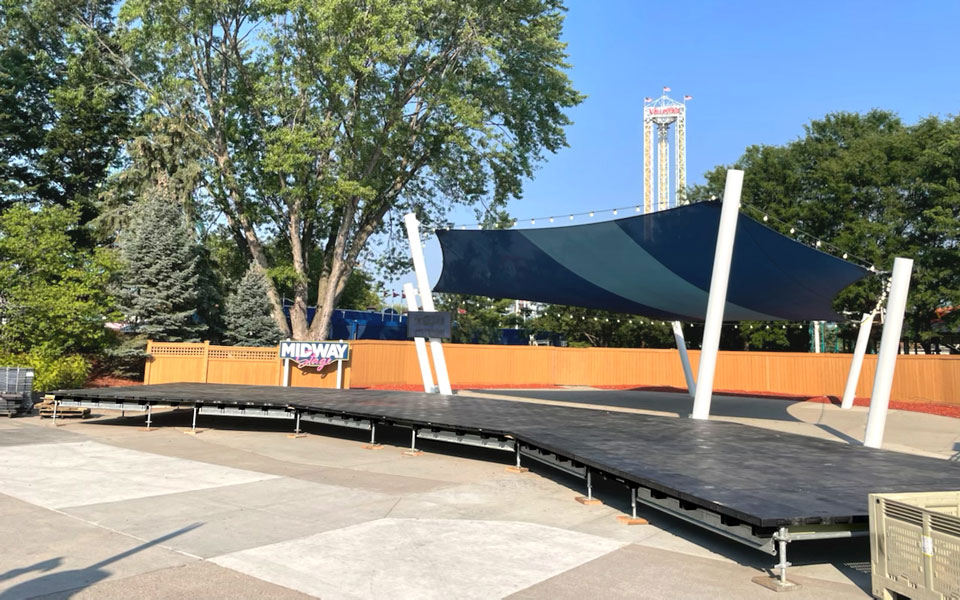

Scaffold Platforms
Integrates with scaffolding systems for elevated viewing areas, stages, and hospitality structures.

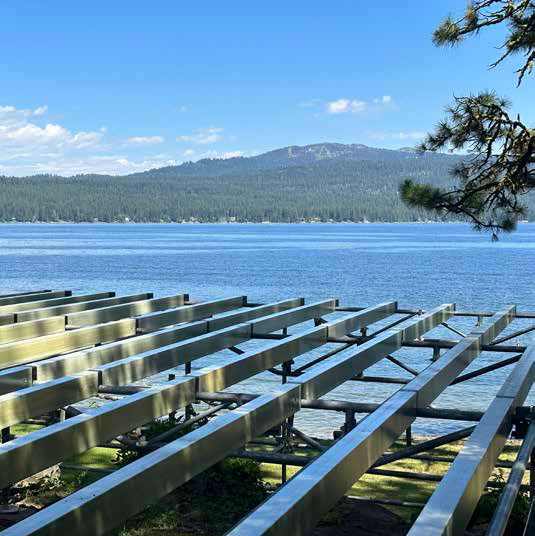

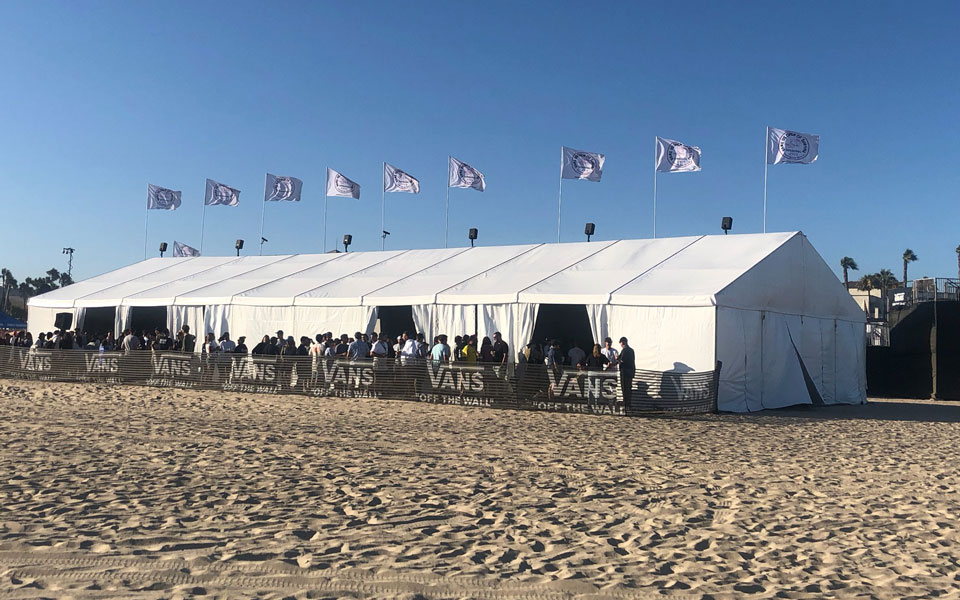

Challenging Terrain
Beach, waterfront, and uneven ground installations where traditional timber would fail or require constant maintenance.

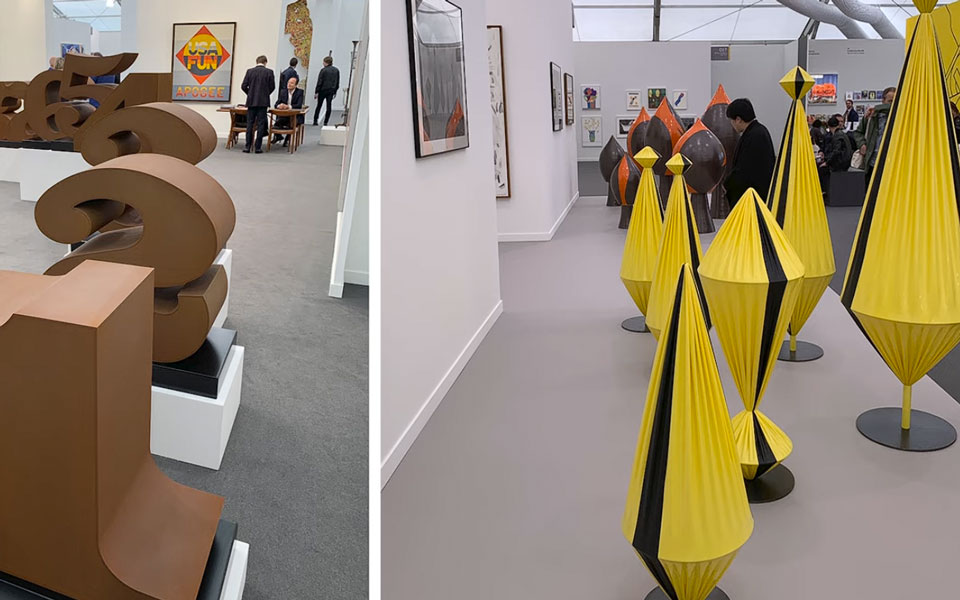

Art Fairs & Exhibitions
Featured at Frieze Art Show and similar premium events requiring reliable, aesthetically clean structural support.

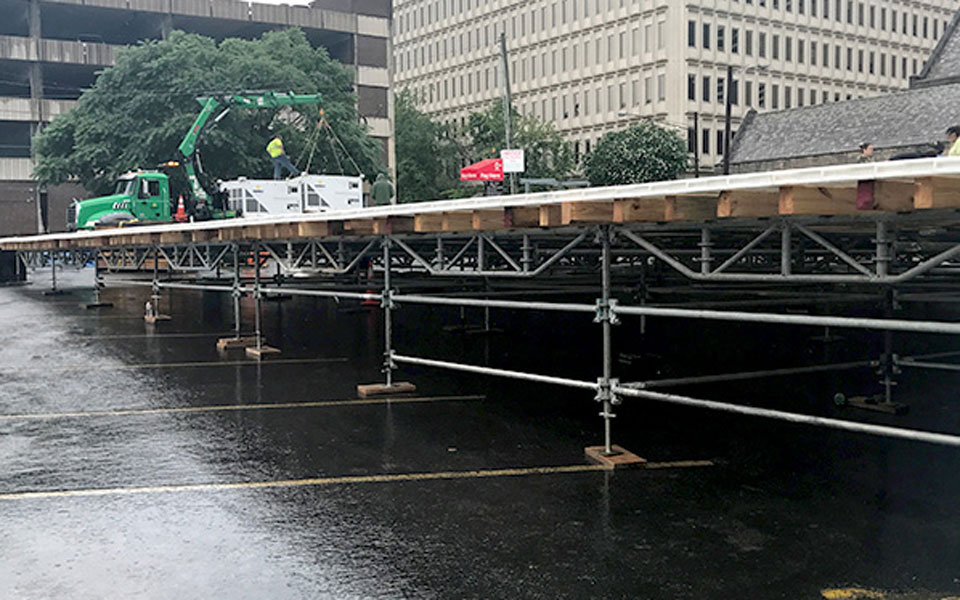

Hybrid Installations
Works with existing wood beam inventory—no need to fully convert. Add BEAMM where you need it most.
See Atlys BEAMM + RASI Connector in Action
Installation time-lapses and project highlights.

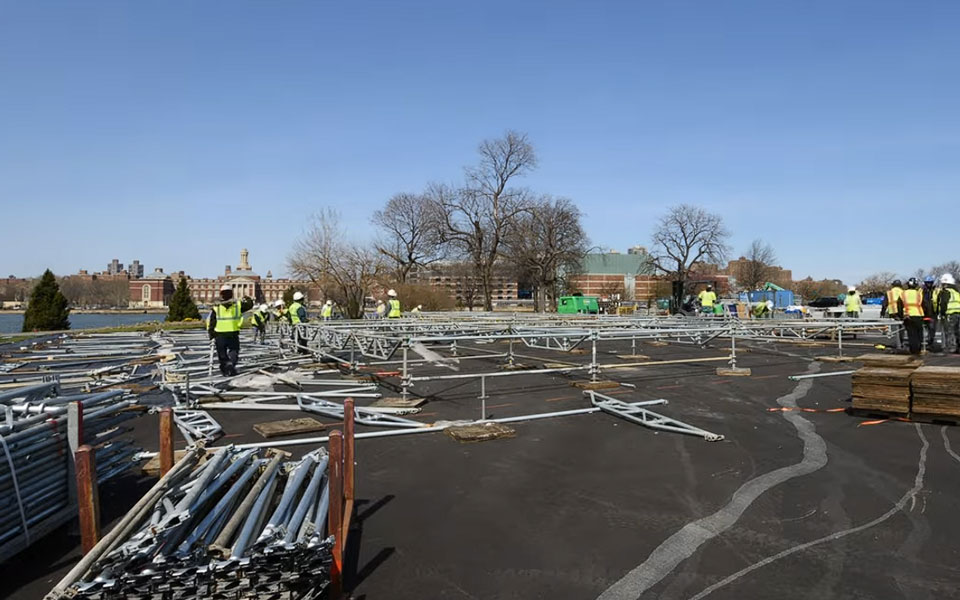

Installation Time-Lapse
Watch BEAMM and RASI Connector installation from start to finish.

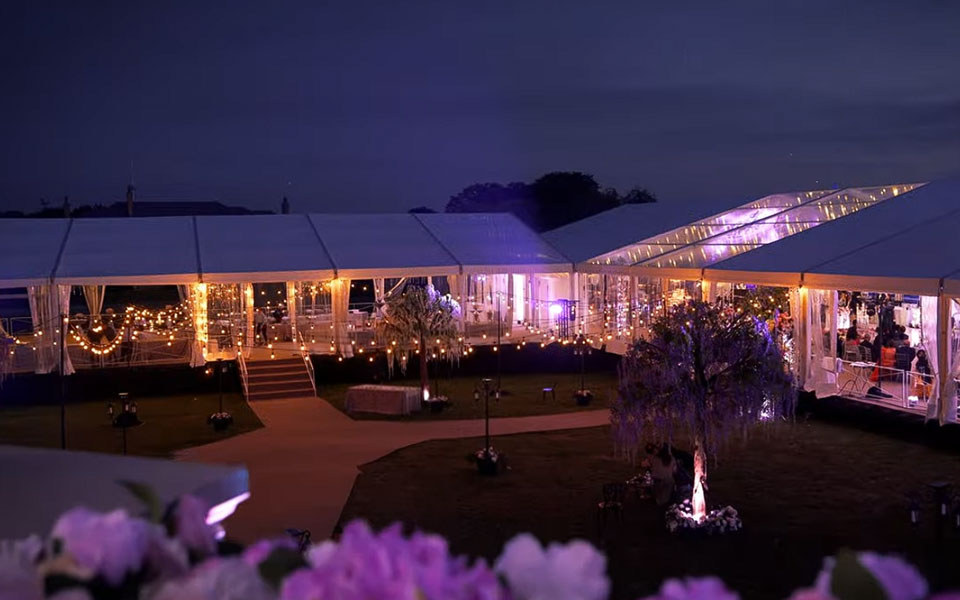

Wedding Venue Build
12,000 sq ft elevated floor built without wood at a private residence.
Frieze Art Show
Behind the scenes at the premium art fair installation
Works Great With
Combine AlphaMax Ultra Deck with these products for complete flooring solutions.
Dura-Trac® Flooring
HDPE modular panels that sit on top of BEAMM for elevated installations. Supports 450+ lbs/ft² when elevated with appropriate beam spacing. The complete system for premium event flooring.

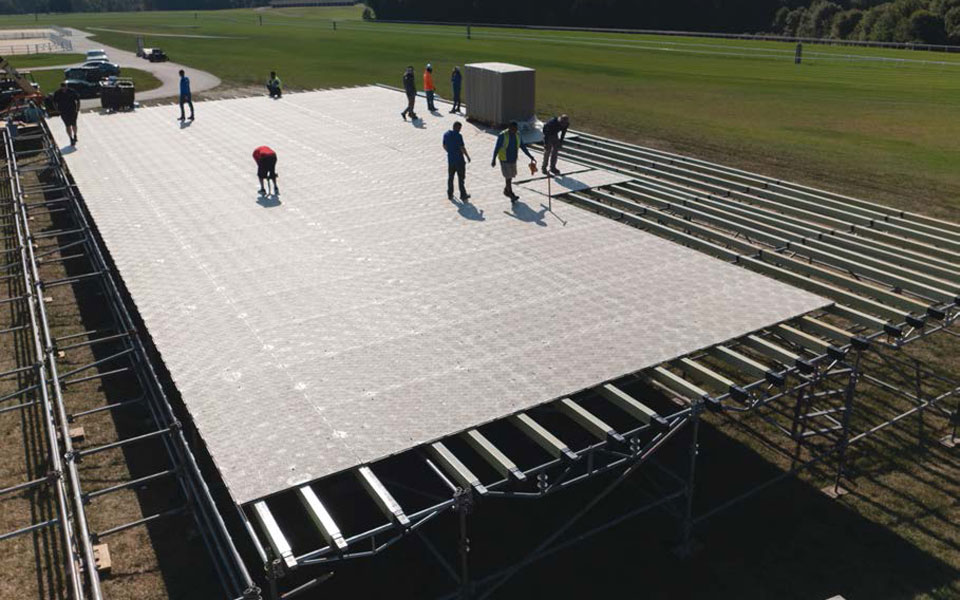

AlphaMax Ultra Deck™
4’×8′ HDPE panels for scaffold decking and ground protection. Pairs with BEAMM for elevated structures requiring larger panel formats. 150 psf elevated load capacity.
