HDPE Modular Flooring

Dura-Trac® Flooring

The Future of Flooring

Modular HDPE panels with a patented slide-lock system. No hinges to break, no pieces to insert—just slide and lock. Available in light-duty and heavy-duty configurations to match your project requirements.



2,500 sq ft/hour

Install rate (crew of 4)



Up to 600 PSI

Load capacity (SB config)



50 lbs per panel

Lightweight, portable



100% HDPE

Recyclable, durable

Talk to an Expert

Download Spec Sheet

UL94HB Flame Certified
Load Ratings Independently Tested
Made in USA

Choose Your Configuration for Dura-Trac Flooring

Dura-Trac flooring comes in two configurations. Not sure which you need? Talk to us – we’ll help you spec the right setup for your project.

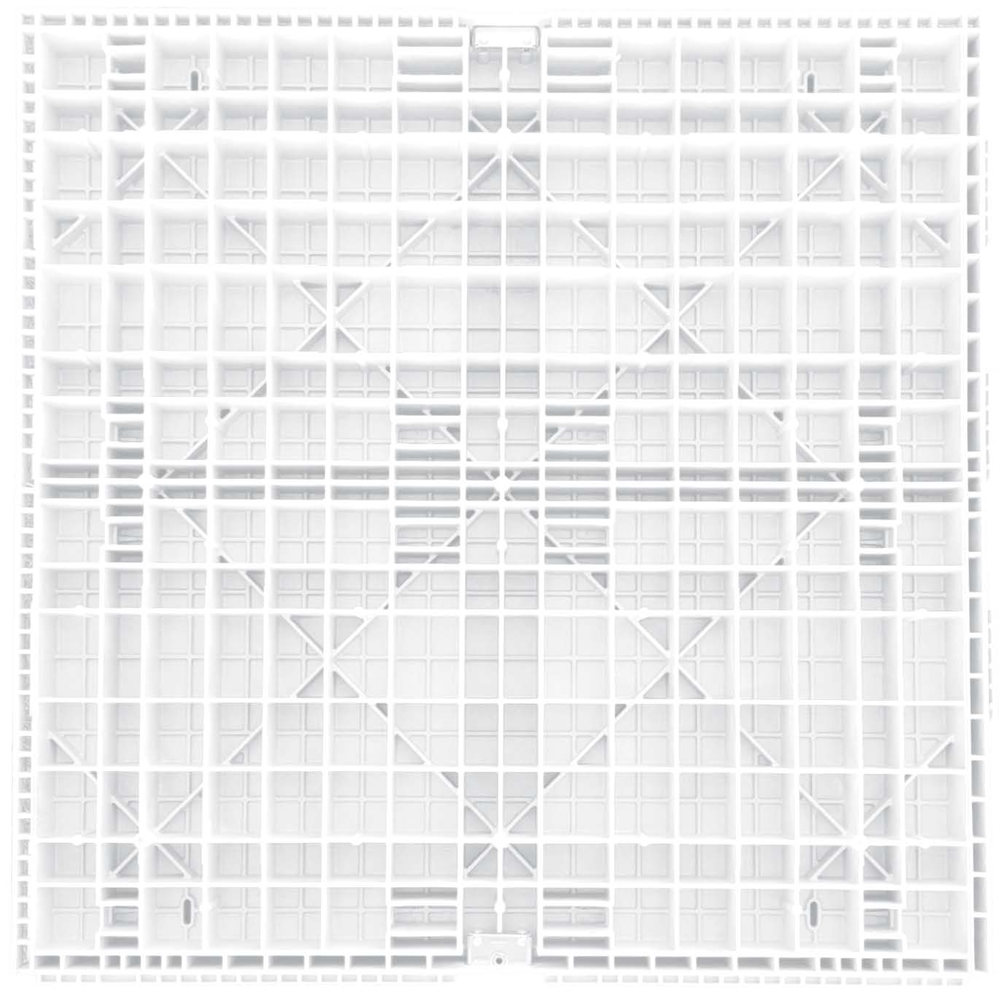

Light Duty

Dura-Trac SE

Open-web system engineered for superior weight distribution. Ideal for pedestrian traffic, light-duty equipment, tents, and structures. Start with SE and upgrade later with Pop-N-Lock Backs if your needs change.

Dimensions

4′ × 4′ × 2.75″

Weight

50 lbs

Load Capacity

250 PSI

Colors

3 standard + custom

Common Applications

Pedestrian Traffic
Tents & Structures
Concert Flooring
Light Equipment
Beach/Sand Installs
Graduations

Upgradeable to SB with Pop-N-Lock Backs

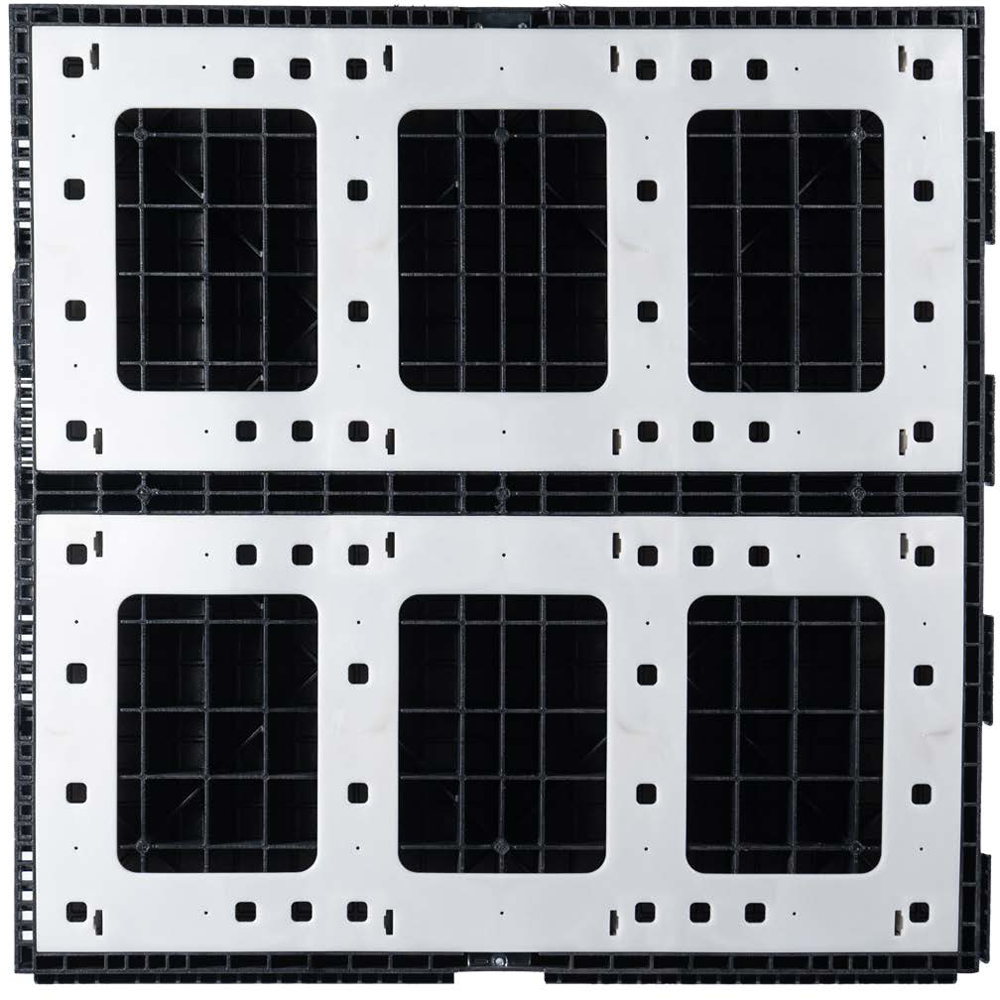

Heavy Duty

Dura-Trac SB

Cross-directional understructure with integrated Pop-N-Lock snap-in system. Enhanced strength, exceptional load capacity, and airflow to protect underlying grass. Built for heavy equipment and vehicle traffic.

Dimensions

4′ × 4′ × 2.75″

Weight

58 lbs

Load Capacity

600 PSI

Colors

3 standard + custom

Common Applications

Heavy Equipment
Vehicle Traffic
Temporary Roadways
Turf Protection
Military/Disaster Relief
Boneyards

Same 2.75″ thickness as SE for compatibility

Full Specifications

For architects, engineers, and technical buyers who need the details.

Specification	SE (Light Duty)	SB (Heavy Duty)
Dimensions	4 ft × 4 ft × 2.75 in thick	4 ft × 4 ft × 2.75 in thick
Usable Surface Area	16 sq ft	16 sq ft
Weight	50 lbs	58 lbs
Load Capacity	250 PSI (depending on substrate)	600 PSI (depending on substrate)
Material	100% HDPE plastic	100% HDPE plastic
Slip Resistance	Textured surface	Textured surface
Temperature Range	-10°F to 110°F	-10°F to 110°F
Flame Resistance	Exceeds UL94HB	Exceeds UL94HB
Durability	Resistant to corrosion, chemicals, solvents, insects, bacteria, and detergent
Cleaning	Medium to high pressure wash. Detergents and antibacterial agents safe.
Panels Per Pallet	16	16
Shipping (48 ft flatbed)	704 panels / 11,264 sq ft	704 panels / 11,264 sq ft
Shipping (20 ft container)	250 panels	250 panels
Shipping (40 ft HC container)	550 panels	550 panels
